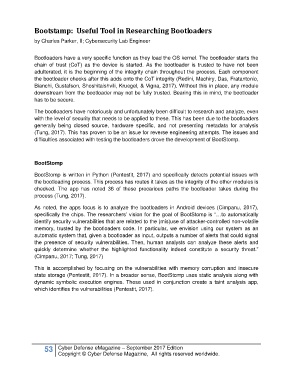

Page 53 - Cyber Defense eMagazine - September 2017

Bootstamp: Useful Tool in Researching Bootloaders

by Charles Parker, II; Cybersecurity Lab Engineer

Bootloaders have a very specific function as they load the OS kernel. The bootloader starts the
chain of trust (CoT) as the device is started. As the bootloader is trusted to have not been
adulterated, it is the beginning of the integrity chain throughout the process. Each component
the bootloader checks after this adds onto the CoT integrity (Redini, Machiry, Das, Fratantonio,
Bianchi, Gustafson, Shoshitaishvili, Kruegel, & Vigna, 2017). Without this in place, any module
downstream from the bootloader may not be fully trusted. Bearing this in mind, the bootloader
has to be secure.

The bootloaders have notoriously and unfortunately been difficult to research and analyze, even
with the level of security that needs to be applied to these. This has been due to the bootloaders
generally being closed source, hardware specific, and not presenting metadata for analysis
(Tung, 2017). This has proven to be an issue for reverse engineering attempts. The issues and
difficulties associated with testing the bootloaders drove the development of BootStomp.

BootStomp

BootStomp is written in Python (Pentestit, 2017) and specifically detects potential issues with
the bootloading process. This process has routes it takes as the integrity of the other modules is
checked. The app has noted 36 of these precarious paths the bootloader takes during the
process (Tung, 2017).

As noted, the apps focus is to analyze the bootloaders in Android devices (Cimpanu, 2017),
specifically the chips. The researchers’ vision for the goal of BootStomp is “…to automatically
identify security vulnerabilities that are related to the (mis)use of attacker-controlled non-volatile
memory, trusted by the bootloaders code. In particular, we envision using our system as an
automatic system that, given a bootloader as input, outputs a number of alerts that could signal
the presence of security vulnerabilities. Then, human analysts can analyze these alerts and
quickly determine whether the highlighted functionality indeed constitute a security threat.”
(Cimpanu, 2017; Tung, 2017)

This is accomplished by focusing on the vulnerabilities with memory corruption and insecure
state storage (Pentestit, 2017). In a broader sense, BootStomp uses static analysis along with
dynamic symbolic execution engines. These used in conjunction create a taint analysis app,
which identifies the vulnerabilities (Pentestit, 2017).
